ten | model

Details will be added shortly.

This loudspeaker is available with the Alnico or Diamond tweeter options together with the DRAM copper and Silver wire options.






specifications | ten diamond

Speaker Type
Drivers


Internal Wiring
Crossover
Binding Posts
Frequency Response
Sensitivity
Impedance
Recommended power
Cabinet
Finishes
Overall dimensions
Weight packed

3 way Bass Reflex floor standing loudspeaker
1 x 260mm Bass (treated paper)
1 x 150mm Mid-bass (treated paper)
1 x 26mm Tweeter,  Diamond Dome with Titanium voice coil former  Hexatech magnet array
Dram Silver Reference
Jensen Copper foil Inductors and Capacitors
Silver Plated terminals
25Hz – 5o kHz ±3dB
90 dB/for 1 watt@1metre
8ohm nominal impedance
Min 8 watts
Multi-layer cold moulded cabinet
Piano Gloss and Polyester Finishes
1055mmH x 325mmD x 335 mmW  (Cabinet)
50 kilos each





specifications | ten alnico

Speaker Type
Drivers


Internal Wiring
Crossover
Binding Posts
Frequency Response
Sensitivity
Impedance
Recommended power
Cabinet
Finishes
Overall dimensions
Weight packed

3 way Bass Reflex floor standing loudspeaker
1 x 260mm Bass (treated paper)
1 x 150mm Mid-bass (treated paper)
1 x 35mm Tweeter, Fabric Dome with alnico magnet
Dram Copper Reference
ART Wirewound Inductors and Claritycap Capacitors
Silver Plated terminals
25Hz – 25 kHz ±3dB
90 dB/for 1 watt@1metre
8ohm nominal impedance
Min 8 watts
Multi-layer cold moulded cabinet
Piano Gloss and Polyester Finishes
1055mmH x 325mmD x 335 mmW  (Cabinet)
50 kilos each


OTHER MODELS IN THE DRAM SERIES from art loudspeakers




Their are five different models in the DRAM series. To find out more about a particular model, please click on one of the models (pictures) on the right.

 DRAM 15

DRAM 15

 DRAM 12

DRAM 12

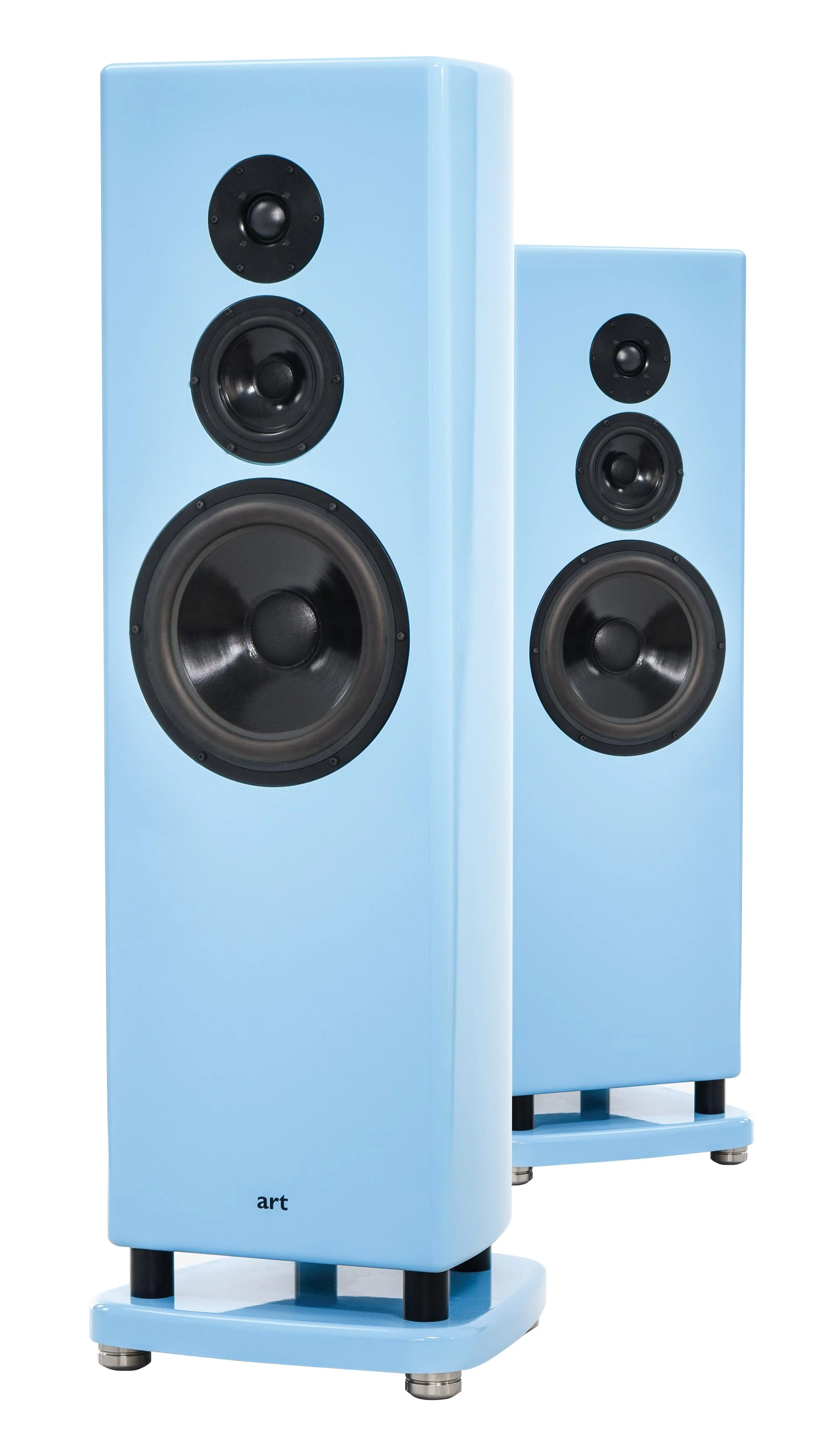

 DRAM 10
