fifteen | model

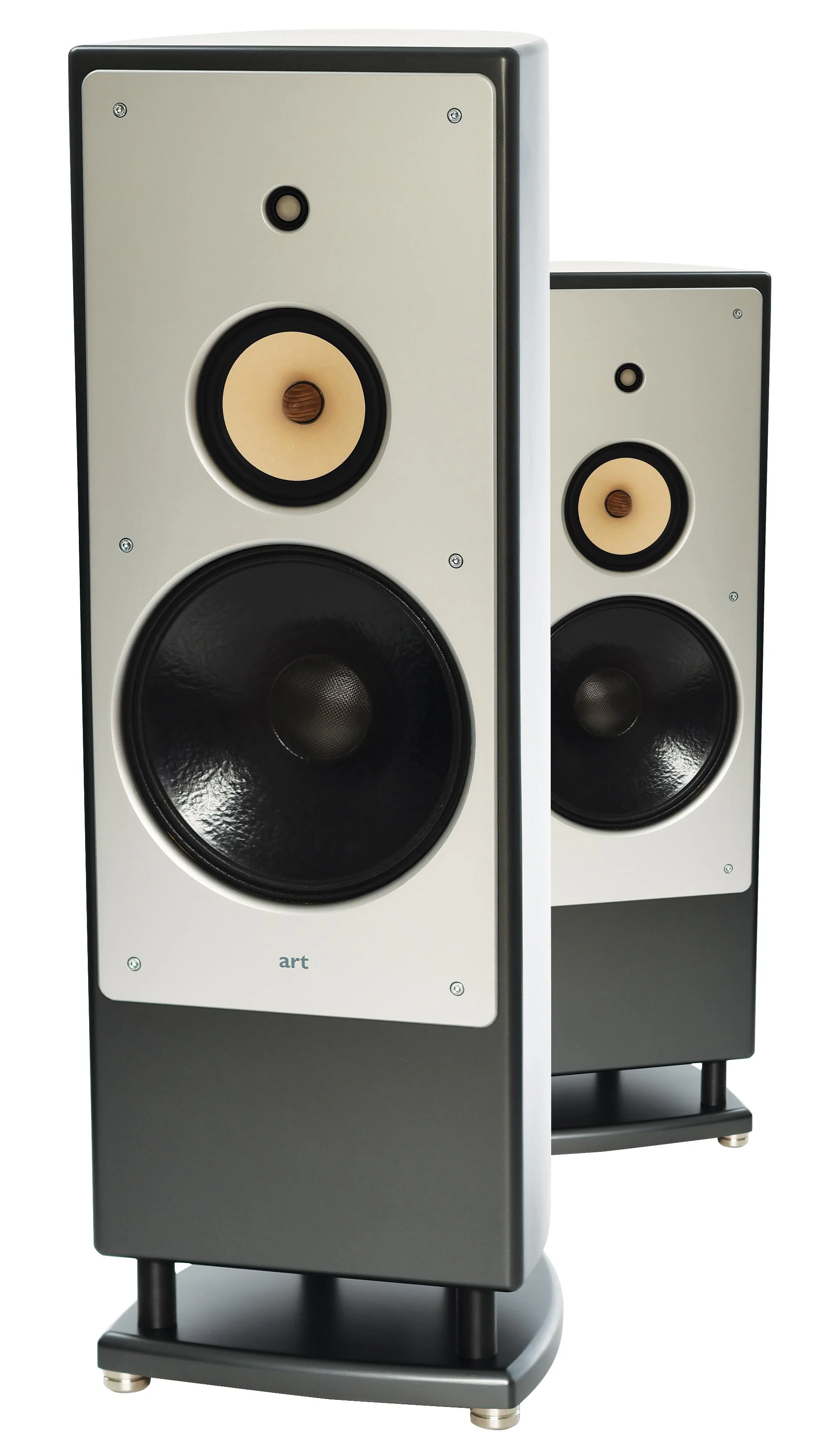

The 'FIFTEEN' Loudspeakers from ART Loudspeakers is a large sized 3-way design that incorporates our in-house and unique multi-layered cabinet construction.

35mm thick walls provide an extremely strong, stiff and inert enclosure. An internal enclosure is also employed to isolate any unwanted intrusions to the all critical midrange performance.

'FIFTEEN' is available in two versions:
Alnico Tweeter or Diamond tweeter, together with DRAM copper or DRAM Silver wire options.

As with the other DRAM models, the cabinets are available in any High Gloss polyester or automotive finishes.





specifications | fifteen diamond

Speaker Type
Drivers


Crossover
Internal Wiring
Binding Posts
Frequency Response
Sensitivity
Impedance
Recommended power
Cabinet
Finishes
Overall dimensions
Weight packed

3 way Bass Reflex floor standing loudspeaker
1 x 375mm Bass (treated paper)
1 x 220 mm Midrange (Papyrus Cone Alnico magnet)
26mm Diamond Dome with Titanium voice coil former  Hexatech magnet array
Jensen Copper foil Inductors and Capacitors
Dram Silver Reference
Silver Plated terminals
23Hz – 5o kHz ±3dB
91 dB/for 1 watt@1metre
8ohm nominal impedance
Min 8 watts
Multi layer cold molded cabinet
Piano gloss Polyester finishes
1360mmH x 410mmD x 450mmW  (Cabinet)
70kg each


specifications | fifteen ALNICO

Speaker Type
Drivers


Crossover
Internal Wiring
Binding Posts
Frequency Response
Sensitivity
Impedance
Recommended power
Cabinet
Finishes
Overall dimensions
Weight packed

3 way Bass Reflex floor standing loudspeaker
1 x 375mm Bass- (treated paper)
1 x 220 mm Midrange Papyrus Cone with alnico Magnet
35mm Fabric Dome with alnico magnet
ART Wirewound Inductors and Claritycap Capacitors
Dram Copper Reference
Silver Plated terminals
23Hz – 25 kHz ±3dB
91.5 dB/for 1 watt@1metre
8ohm nominal impedance
Min 8 watts
Multi layer cold molded cabinet
Piano gloss Polyester finishes
1360mmH x 410mmD x 450mmW  (Cabinet)
70 kilos each


OTHER MODELS IN THE DRAM SERIES from art loudspeakers




Their are five different models in the DRAM series. To find out more about a particular model, please click on one of the models (pictures) on the right.
